SW-V1

Compact multijoint robot - SW-V1
This multijoint robot is easy to set up, without the need for teaching in order to input task details.
It has a slim arm structure and can support tasks that require fine movements.

Features

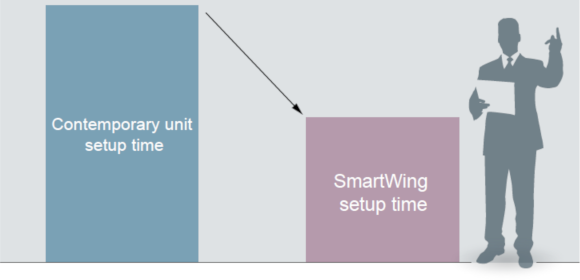

Easy to set up

By using coordinate correction technology and vision data, teaching with physical guidance which is necessary for conventional robots is no longer necessary. The time required for startup is greatly reduced.

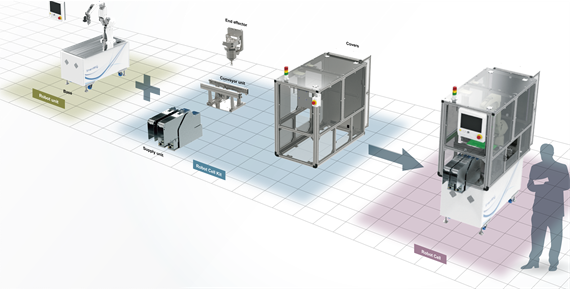

Robot Cell concept

Standard peripheral units are provided as options. The cost required for designing and manufacturing is also reduced. This contributes to a reduction in the total cost.

Can produce immediately

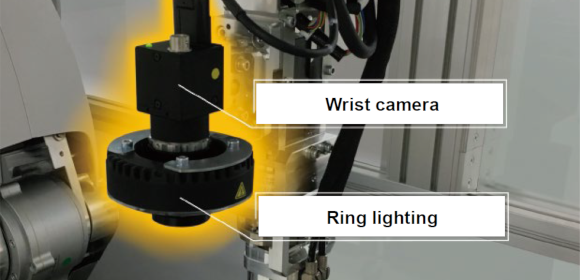

A camera system is equipped with SmartWing as standard. Settings required to use the camera such as for calibration are specified before shipping. Therefore, specifying settings for the camera which was troublesome work is not necessary and the robot can be used immediately after installation.

Anyone can use

Vision processing data and robot operation can be created easily without requiring specialized knowledge and experience.

Usage examples
Advanced Robot Cell series

Tray Packaging Robot Cell SW-BT/TT

A robot cell that specializes in arranging workpieces into trays is packaged as a purpose-built machine. The packaged machine arranges loose-supplied workpieces or connectors supplied in simple trays into JEDEC size trays.

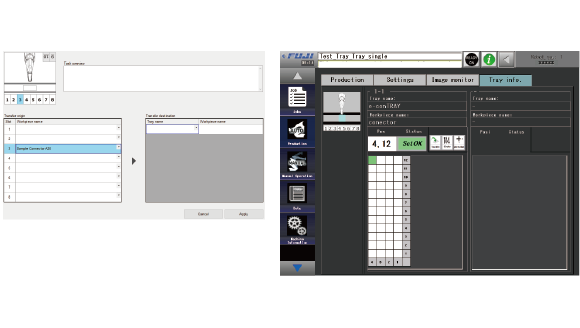

Easy programming

These machine packages are configured to make programming even easier with an intuitive dedicated editor.

Digital selective soldering machine Wing Shot®

Automates soldering processes. The compactness of the soldering unit makes it possible to integrate the unit into SmartWing. It is possible to specify the solder volume and detailed solder conditions for each production number, leading to stable soldering quality.

Easy maintenance

An automatic sleeve changer, which automatically changes solder sleeves that require maintenance, is equipped as standard. It discards used sleeves into a sleeve collection unit. The frequency of changing sleeves can be specified based on the soldering count.

Sample videos

Various training programs

There are special training programs for SmartWing in addition to industrial robots available at the Fuji Headquarters factory.
