Using Top View Recognition to Prevent Part Setting Mistakes

Products / Technologies / Exhibitions



There are times when an operator may set the wrong part type or set parts in the incorrect supply direction when supplying parts to the machine.
For example, when setting trays to a tray drawer there can be cases in which the incorrect parts are set or the supply direction may be wrong such as when a tray is set in the wrong direction or if someone has returned parts that have come out back into the tray by hand.
These kinds of mistakes can cause bad placements or machine stops due to vision processing errors, leading to poor product quality and delays in production. This will also result in reworking or the disposal of produced products. Normally, the bottom of a part is vision processed and the part type and supply direction are checked based on the image of the bottom of the part. However, there are many part types for which it is not possible to differentiate between them because they do not have any characteristics that can be used to determine type and direction on the bottom of the part.

Fuji provides methods for solving these problems with Top View Recognition (TVR). TVR makes it possible for the machine to recognize characteristics on the top of the part before pickup, preventing the types of placement errors that setting mistakes might cause. This article explains two of the major focuses of using TVR.

TVR for recognizing characteristics on top of parts

TVR part matching check

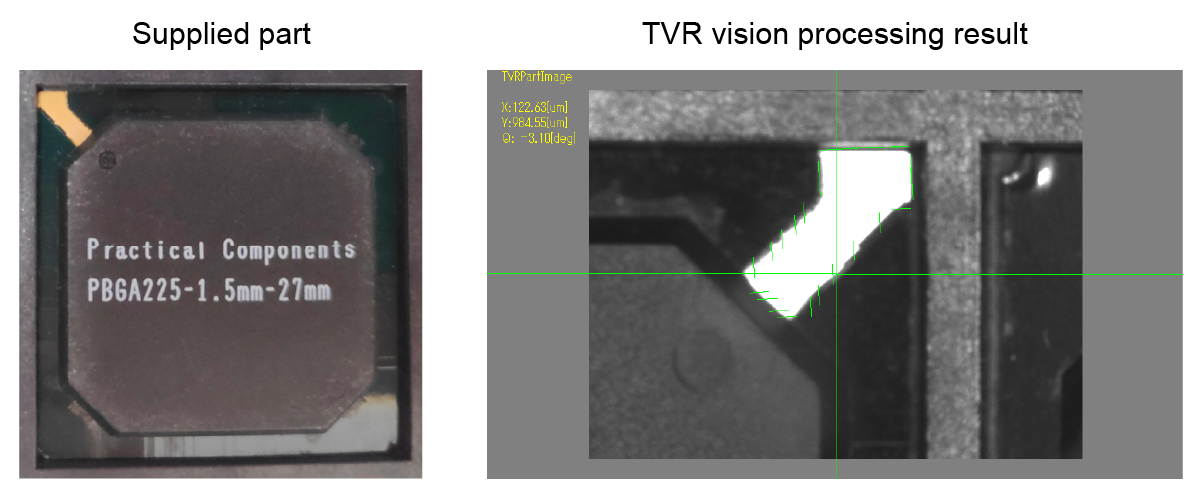

  • Recognizes certain characteristics on the top of parts and matches them against image data to determine whether that part is usable.
  • Prevents the wrong part from being used.

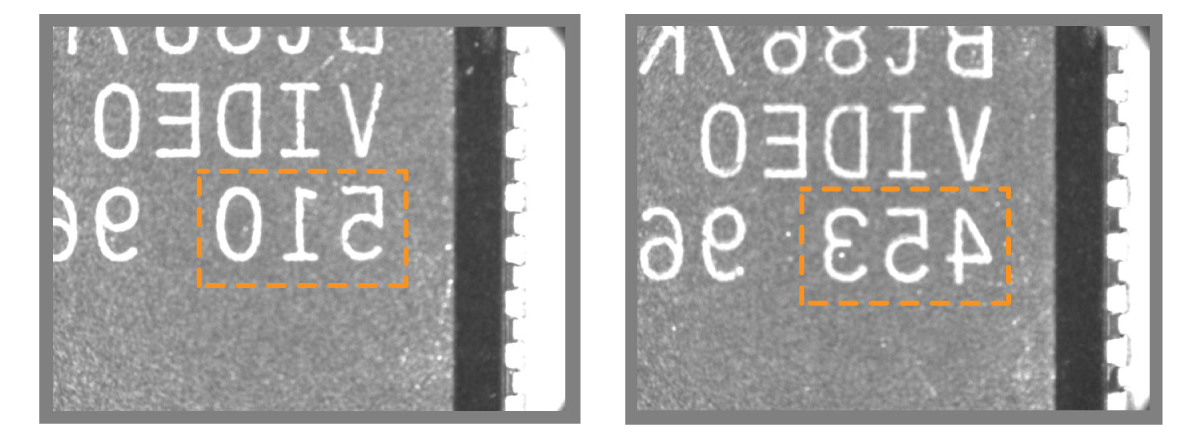

  • Manages the part lot by verifying the inscription on top of parts. (For example: Managing regionalized items, models, and different specifications)

Recognizes the specific characteristics and determines whether the part can be used

Manages the part lot by verifying inscriptions

TVR supply direction check

The characteristics on the top of the part are recognized, and the conformity of the part supply direction is determined.
By doing this, even if the supply direction is incorrect, parts can be placed at the correct angle. (See note)
Note: It is possible to select between angle correction, skipping pickup, and stopping the machine.

Determining the conformity of the part supply direction

Recognizing inscribed markings clearly using a low angle lighting unit

Laser inscribed markings can be difficult to image clearly depending on the camera angle and the way the light hits the markings. This makes discerning those markings during vision processing difficult.
Attaching a low angle lighting unit to the machine makes it possible to have inscribed marking show clearly during imaging.
Applicable machines: AIMEX III, AIMEX IIIc (Custom support is available for AIMEX IIS)
Note: Supported part supply units are Fuji intelligent feeders, tray unit-LTW, and tray unit-LTW2

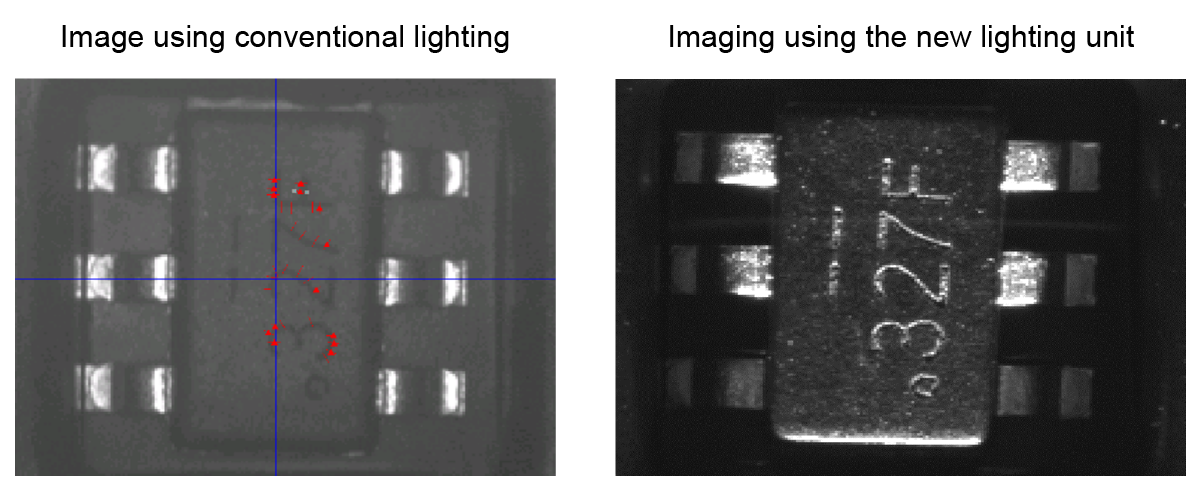

Inscribed markings are imaged more clearly using the new lighting unit

Basic specifications

TVR part matching check
Machine types*1
NXT III / NXT IIIc / NXT II / NXT IIc
AIMEX III / AIMEX IIIc / AIMEX II / AIMEX IIS / AIMEX
(Twin robot/single robot and standard production/multi production are supported)
Head type H01 / H02(F) / OF / H08M / H12HS / V12 / H24 series / DX(S1/R4/R12)
Part supply units*2 Not specified
Part size Based on the head specifications
Recognition target: 6 x 6 mm or less
Verification timing Feeders: The first part only
Trays: Select between only the first part, or all parts
TVR supply direction check
Machine types*1
NXT III / NXT IIIc / NXT II / NXT IIc
AIMEX III / AIMEX IIIc / AIMEX II / AIMEX IIS / AIMEX
(Twin robot/single robot and standard production/multi production are supported)
Head type H01 / H02(F) / OF / DX(S1)
Part supply units*2 Not specified
Part size Based on the head specifications
The direction mark size must be less than 6 x 6 mm
Supply direction 0, 90, 180, 270 degrees
Supply direction All parts

*1: This depends on the version.

*2: There are restrictions on the mark camera stroke. These restrictions mean that there are areas on supply units at which TVR cannot be used.



For more details, contact us using the contact form. Casual inquiries welcome.
