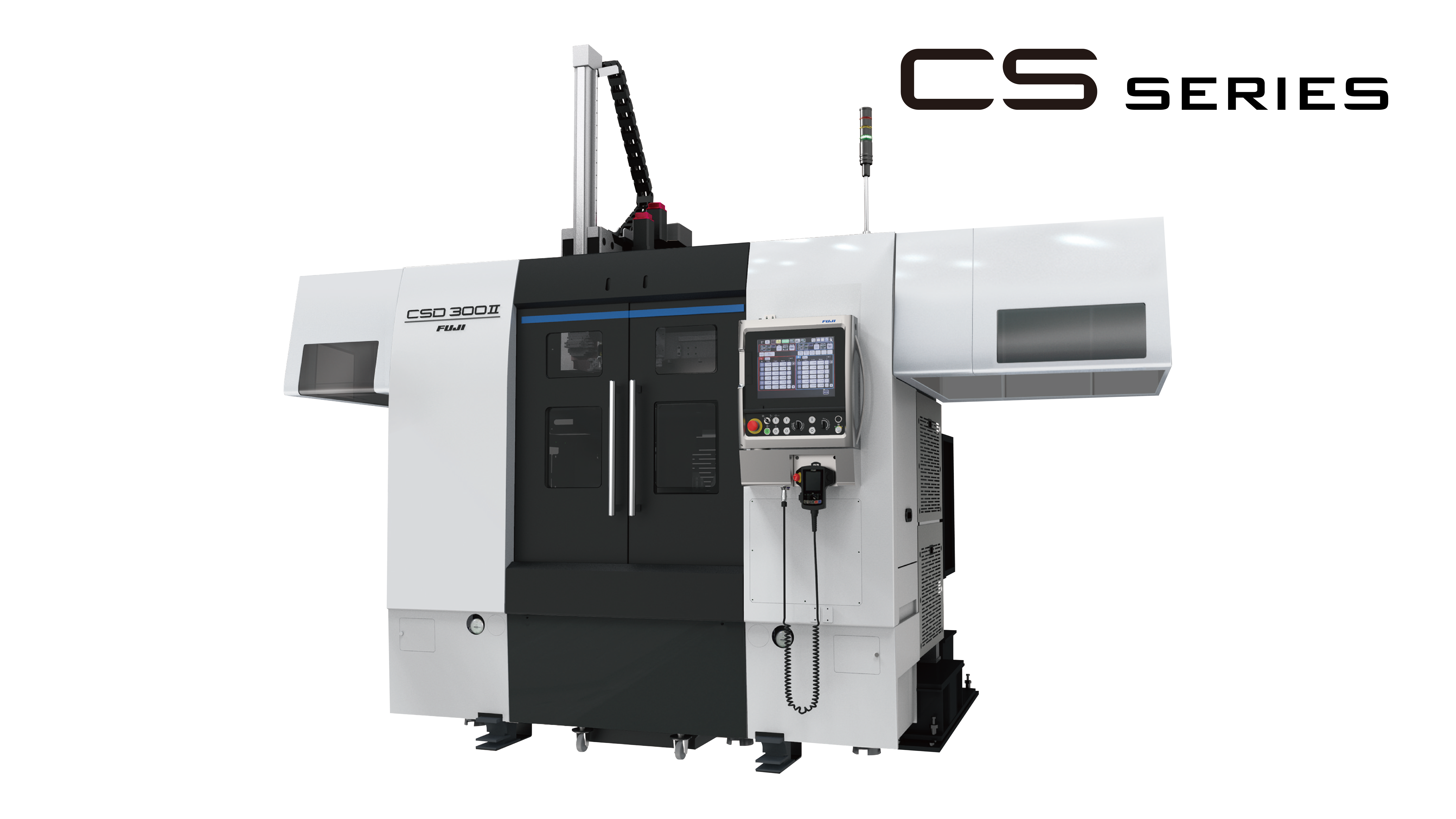

CS Series

The thermally stable and space saving design bed is equipped with high rigidity slide, zero-core headstock, and high speed turret. The column with a high rigidity ensures stable quality.

A high-speed three-axis gantry robot is used and this eliminates wasted time during workpiece loading and unloading, enabling shorter cycle times. By making it lighter than previous models, even greater speeds can be reached.

This is a cam type indexing turret for high-speed indexing. Servo motors are employed as the drive source. Furthermore, the addition of a hydraulic clamping mechanism increases the rigidity of the output shaft and suppresses chattering during high-load cutting.

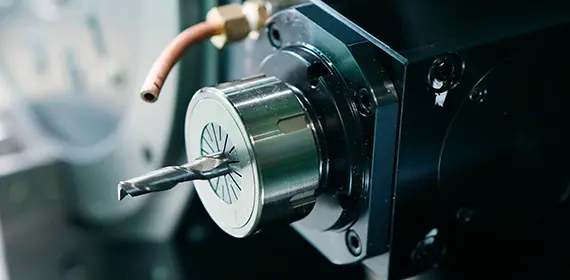

Live tools which rotate up to 4000 rpm can be equipped.

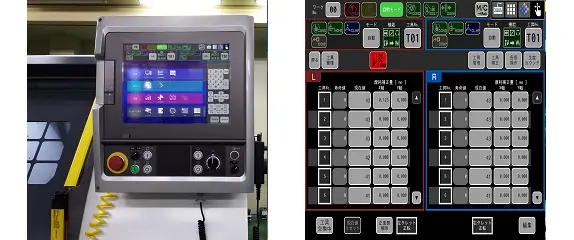

Feons is Fuji's original operation panel designed to improve operability and maintainability.
Intuitive operation is possible from integrating lamps and buttons.
Global support is possible by switching between multiple languages.
Comes standard with iHMI. The interactive programming style also contributes to supporting high-mix, low-volume production.

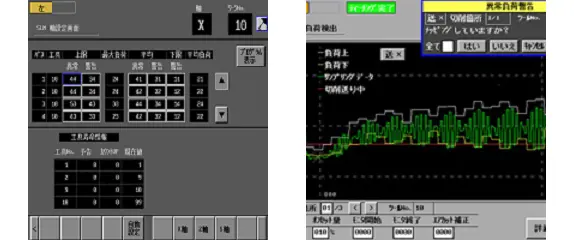

This system monitors the load on the spindle and feed motors to detect abnormal loads during machining.
Two system types are available: ILM Light, which enables high-accuracy monitoring tailored to the load, and SLM, which prioritizes ease of use with simple settings.

This is a front facing twin spindle lathe. There are three machine sizes available.

This is a front facing single-spindle lathe capable of forming a three-process production line when paired with a CSD.

Our lineup also includes machines equipped with dual gantries, which are ideal for workpieces requiring short machining times.
