TN Series

While maintaining high rigidity, the heat-balancing bed that keeps thermal displacement minimized is designed so that dimensional changes caused by heat is minimized. This is achieved by making full use of the latest CAE analysis and feedback from verification results by machines.

Robot control is centralized in FANUC. This uses main and sub slides with a double-action construction for the vertical axis, minimizing the machine height when the robot is raised. The robot hand is hydraulically clamped for reliably carrying heavy objects.

Live tools which rotate up to 4000 rpm can be equipped.

When equipped with a tailstock, shaft workpieces are also supported.

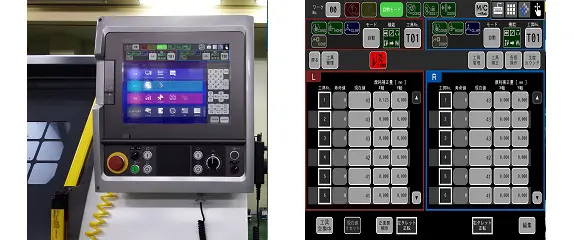

Feons is Fuji's original operation panel designed to improve operability and maintainability.
Intuitive operation is possible from integrating lamps and buttons.
Global support is possible by switching between multiple languages.
Comes standard with iHMI. The interactive programming style also contributes to supporting high-mix, low-volume production.

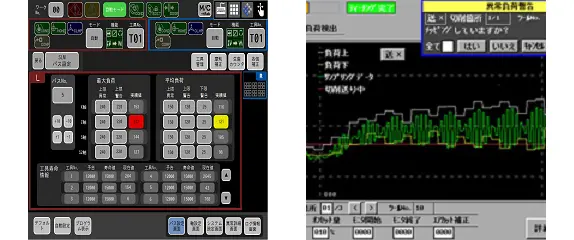

This system monitors the load on the spindle and feed motors to detect abnormal loads during machining.
Two system types are available: ILM Light, which enables high-accuracy monitoring tailored to the load, and SLM, which prioritizes ease of use with simple settings.

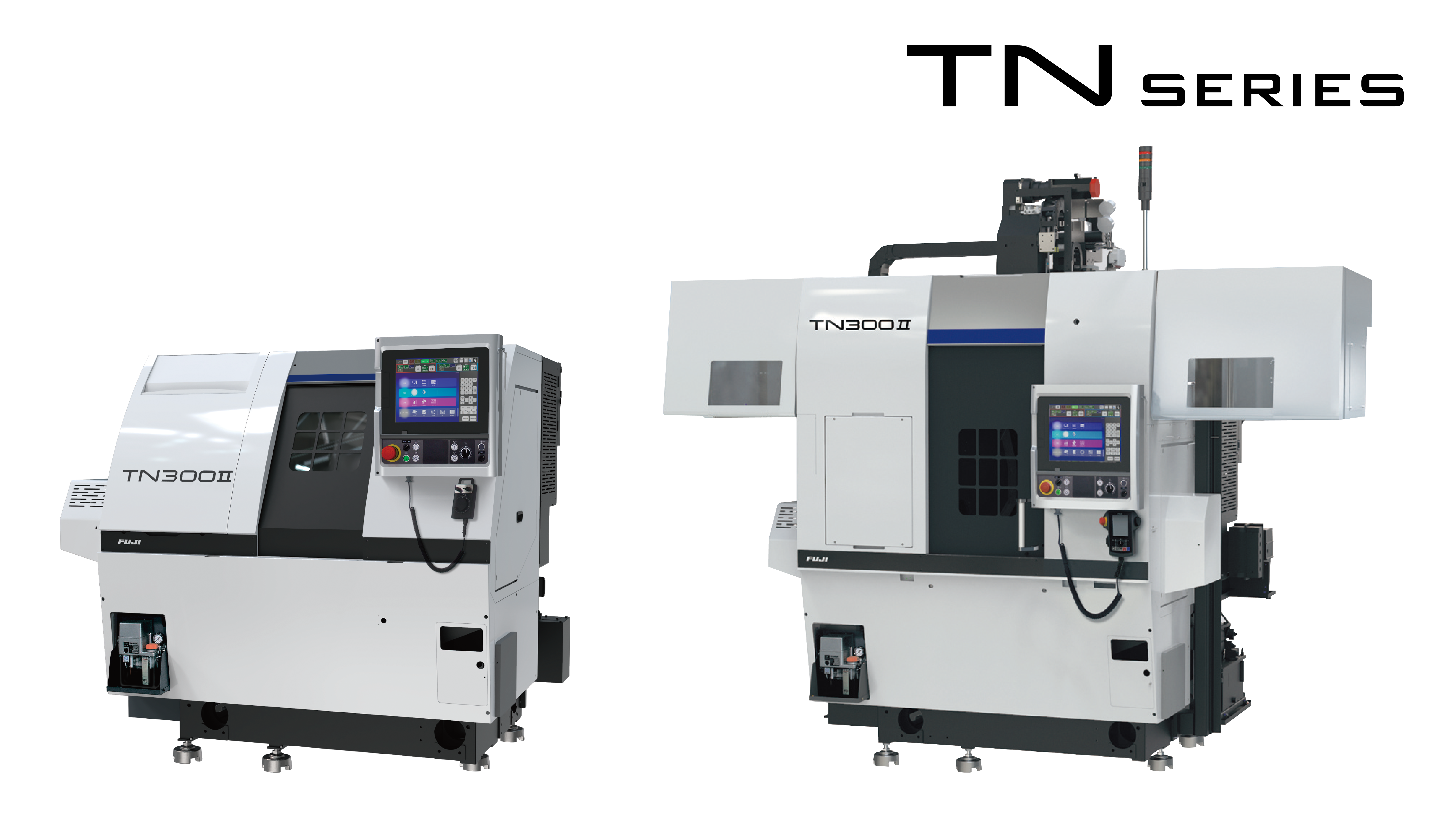

These are standard types in which an operator needs to attach and remove workpieces.

This is a standard lathe for which automation is possible through having a robot.
