Multi-Tasking Machine with Y-Axis Tool Spindle (Opposed Twin Spindle, Automated Machine)

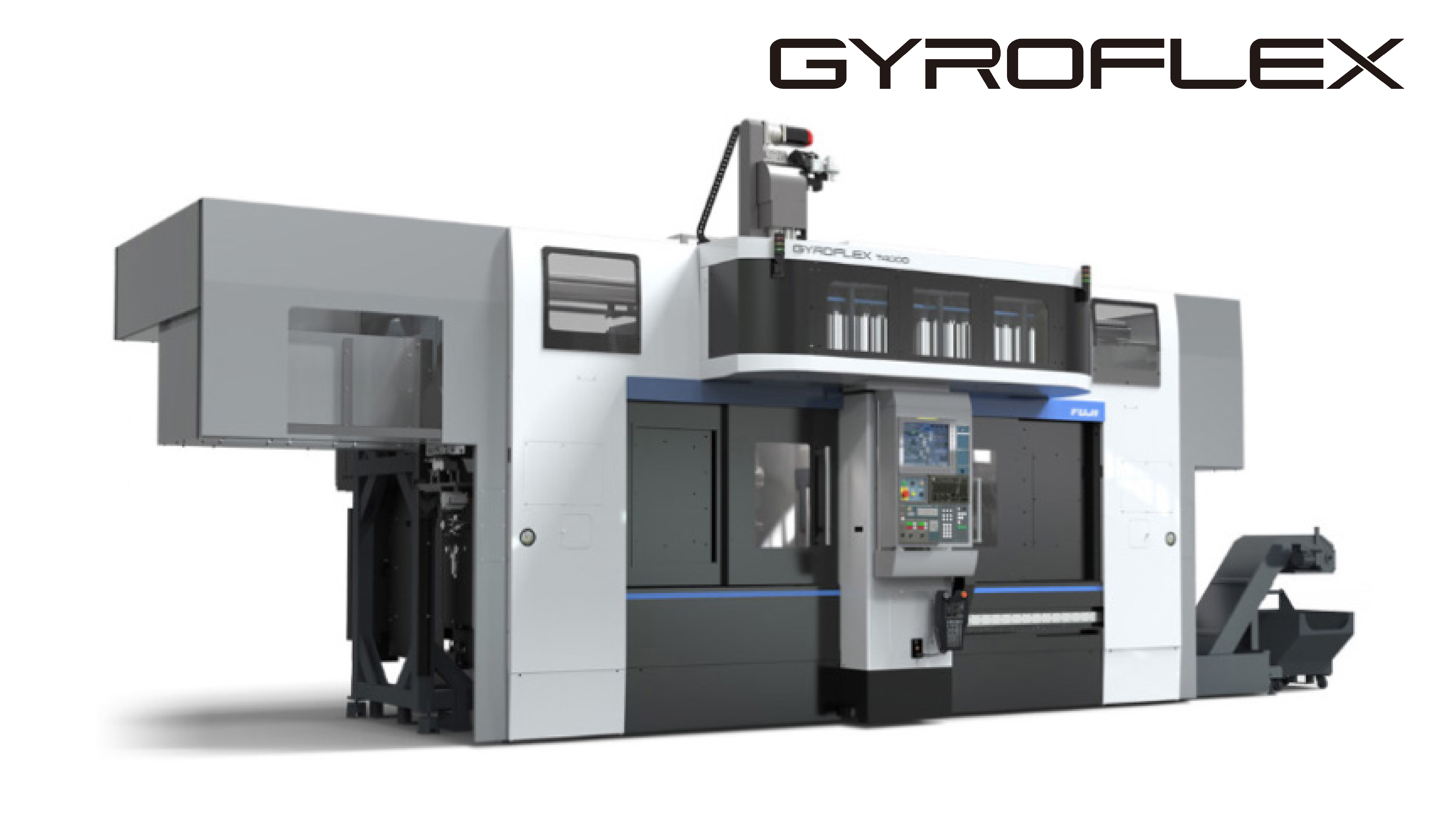

GYROFLEX T4000

Bringing together cutting-edge technology
High-end multitasking machine

This fully automatic multitasking machine boosts customer profitability while improving machining efficiency and flexibility.

Download catalog

Contact and Support

GYROFLEX features

Can consolidate processes

In addition to the turret-style tool holder, the tool spindle supports up to 70 different cutting tools, enabling a wide range of machining. This makes it ideal for high-mix, medium-volume production by consolidating processes. Furthermore, since all machining operations can be completed in a single machine, it offers significant space-saving benefits.

Workpiece spindle

Set on the opposite side on the Z-axis slide with a 960 mm stroke
Has two axes of the same size and capability, allowing for simultaneous machining at both axes
Workpieces can be transferred between spindles while maintaining phase accuracy
The Z-axis slide can be operated at high speed to minimize workpiece loading times between spindles

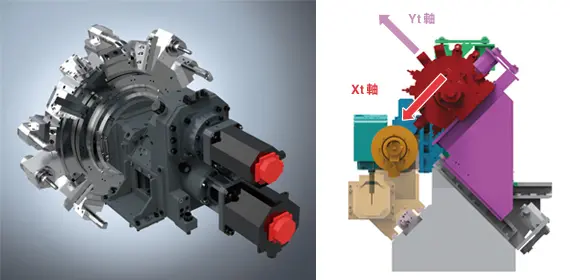

Live tool turret

Can equip 15 cutting tools
High-rigidity slides are used for the X and Y axes
Turret indexing time : 0.4 seconds
Hydraulic curvic coupling
Live tools for heavy-duty cutting

Live tool rotation speed : Max. 4,000 min-1
Live tool motor: 4.5 kw

Tool spindle

High-rigidity slides are used for the X and Y axes
The 190-degree swing allows access to the workpiece spindles on both sides. This expands the machining ability.
Capto C6 is supported as standard
Lathing operation can also be performed because the B axis uses a curvic coupling
High-performance tool spindle

Tool spindle rotation speed : Max. 12,000 min-1
Tool spindle motor : 11 kw

ATC

By using the magazine located above the tool spindle, it is possible to smoothly change tools.
Up to 40 tools can be held
Fastest tool change time : 4 seconds
Maximum diameter : 130 mm

Maximum tool length : 300 mm
Maximum tool weight : 8 kg

Programming support

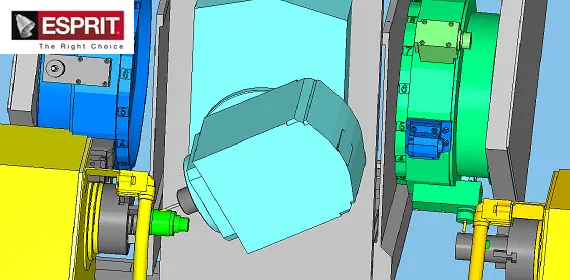

3D-CAM (ESPRIT) makes it easy to create programs. You do not need to worry about adapting to increasingly diverse part shapes or process consolidation.

Autonomous operation

The standard-equipped robot enables high-speed loading and unloading of workpieces as well as unmanned operation. Superior chip handling capabilities support stable, continuous automatic operation of the machine.
In addition, since it can attach and remove heavy workpieces, the workload on operators is reduced.

Three-axis gantry robot

Can access peripheral machines on both sides of the machine
This uses parent and child slides with a double-action construction for the vertical axis, minimizing the machine height.
The robot chuck features a hydraulic drive to ensure powerful, reliable clamping In addition, the slim, double-sided gripper enables workpiece handling in the smallest of spaces
A workpiece clamping confirmation sensor can be attached as an option.
