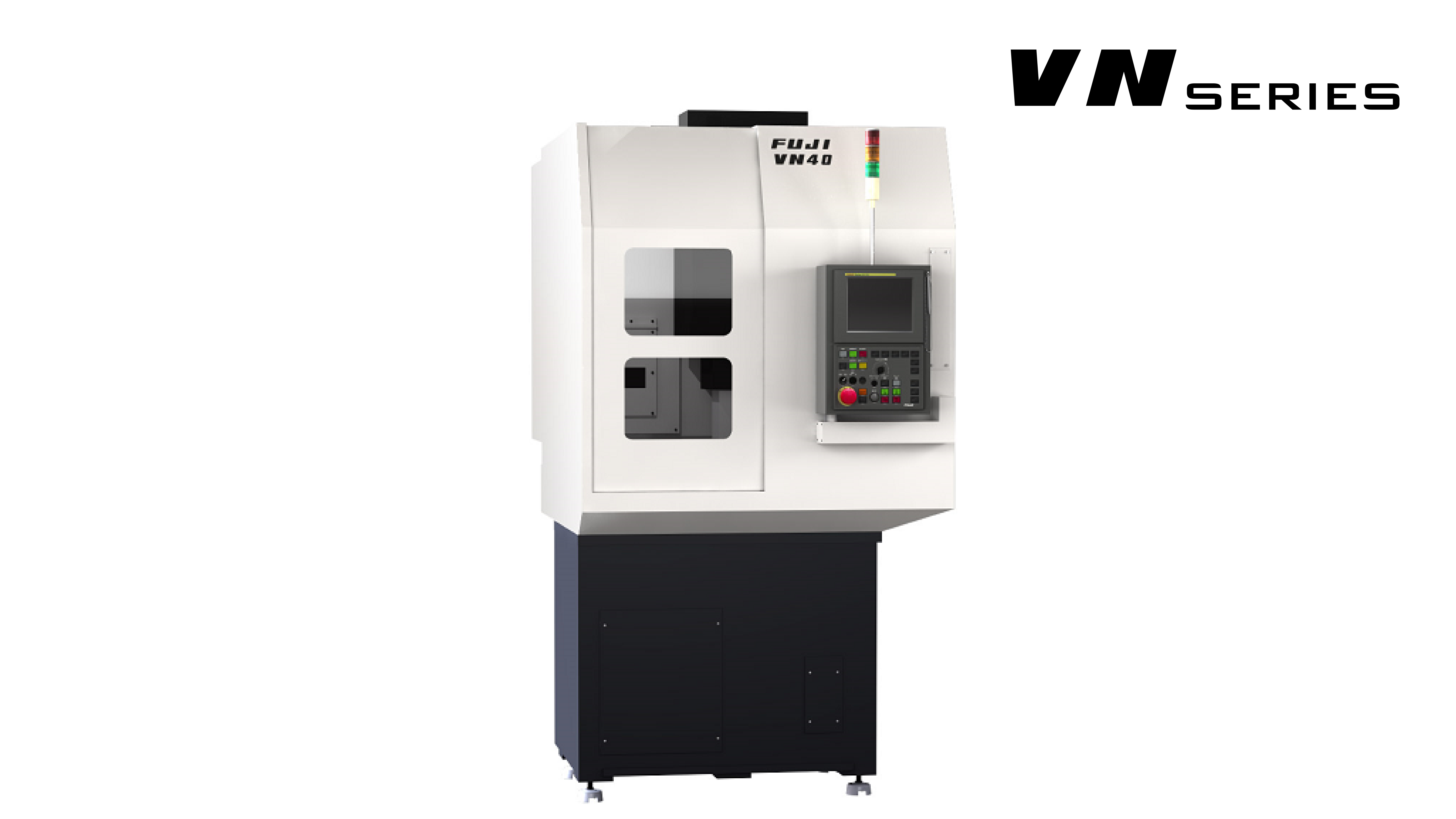

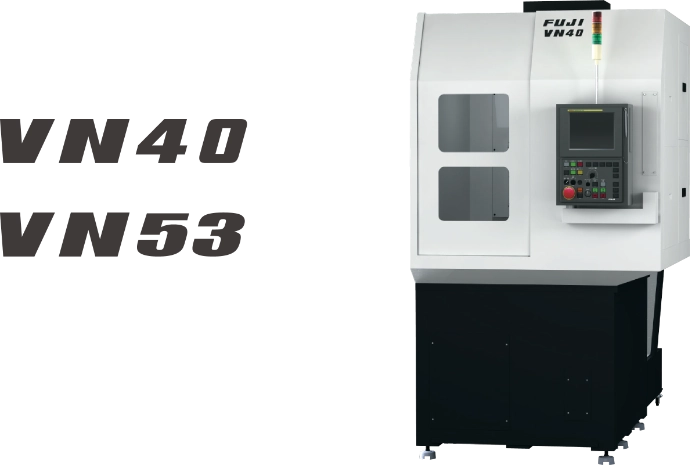

VN Series
High-rigidity vertical lathe that excels at large-scale and
heavy-duty machining
This vertical CNC lathe handles machining of large workpieces and hardened materials, all within a compact footprint.
VN Series features

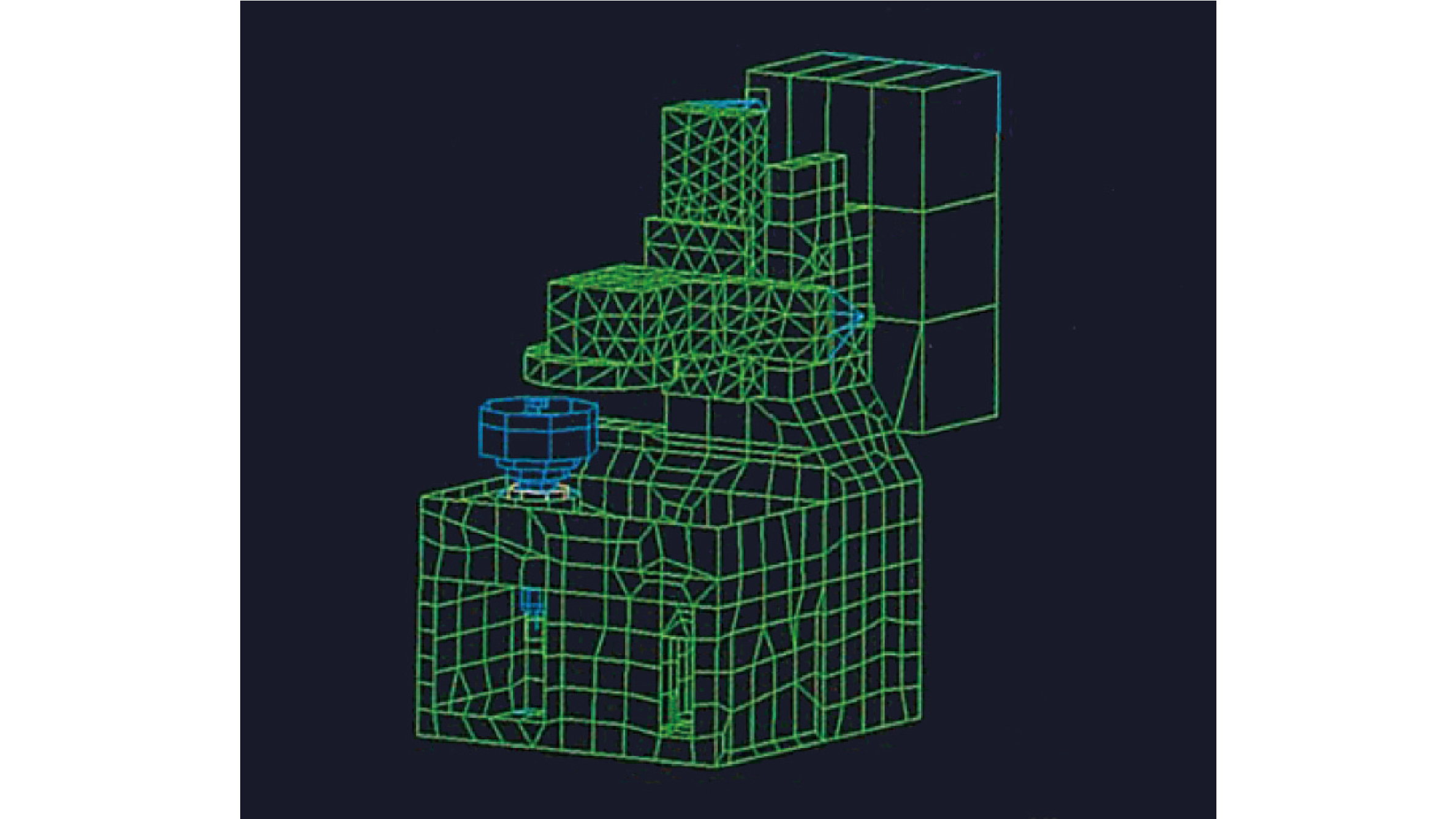

Mechanical structure that guarantees high precision machining
The mechanical body structure including the spindle, slide, and turret is optimally designed with CAE analysis technology, and this improves rigidity and reduces thermal deformation. Stable machining accuracy for long periods of time is guaranteed.

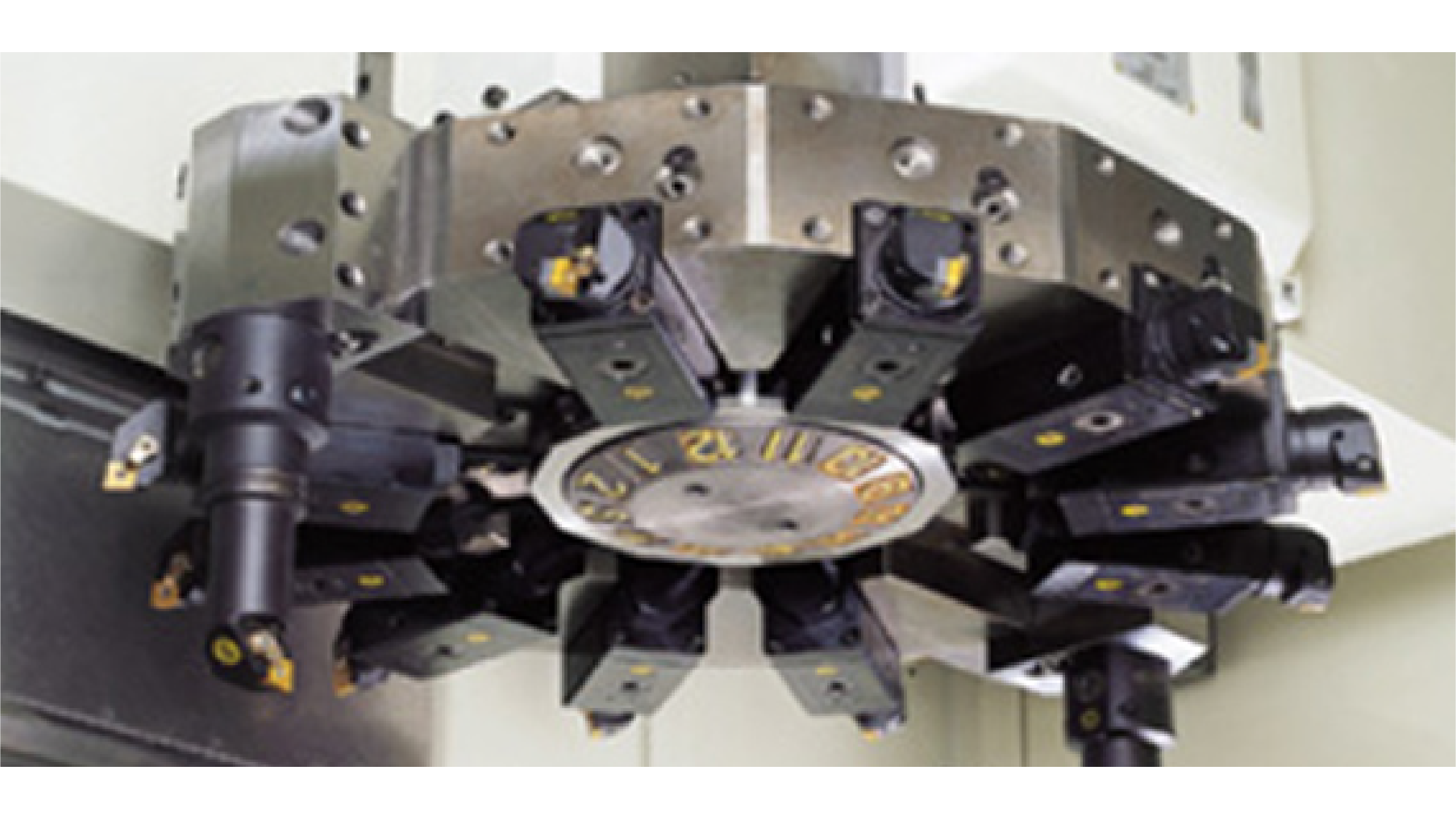

Highly rigid 12 station turret
The 12 station turret with curvic coupling improves rigidity for heavy cuts and excellent tool life. (VN40)

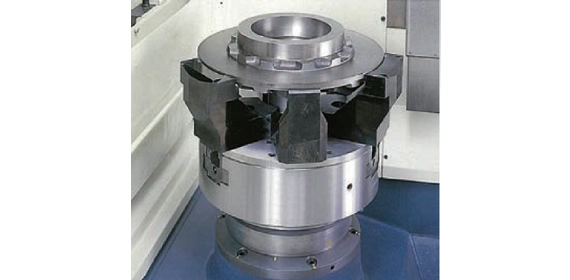

Clamps heavy and odd-form workpieces stably
Even for heavy and odd-form workpieces that are difficult to keep in a stable stance when clamping with a horizontal lathe, a vertical lathe can clamp the workpiece securely because the workpiece adheres tightly to locators from its own weight.
Headstock
Intrusion of cutting fluid and chips is completely prevented by an air barrier. In addition, maintenance can be easily performed because a quill-type headstock is used.

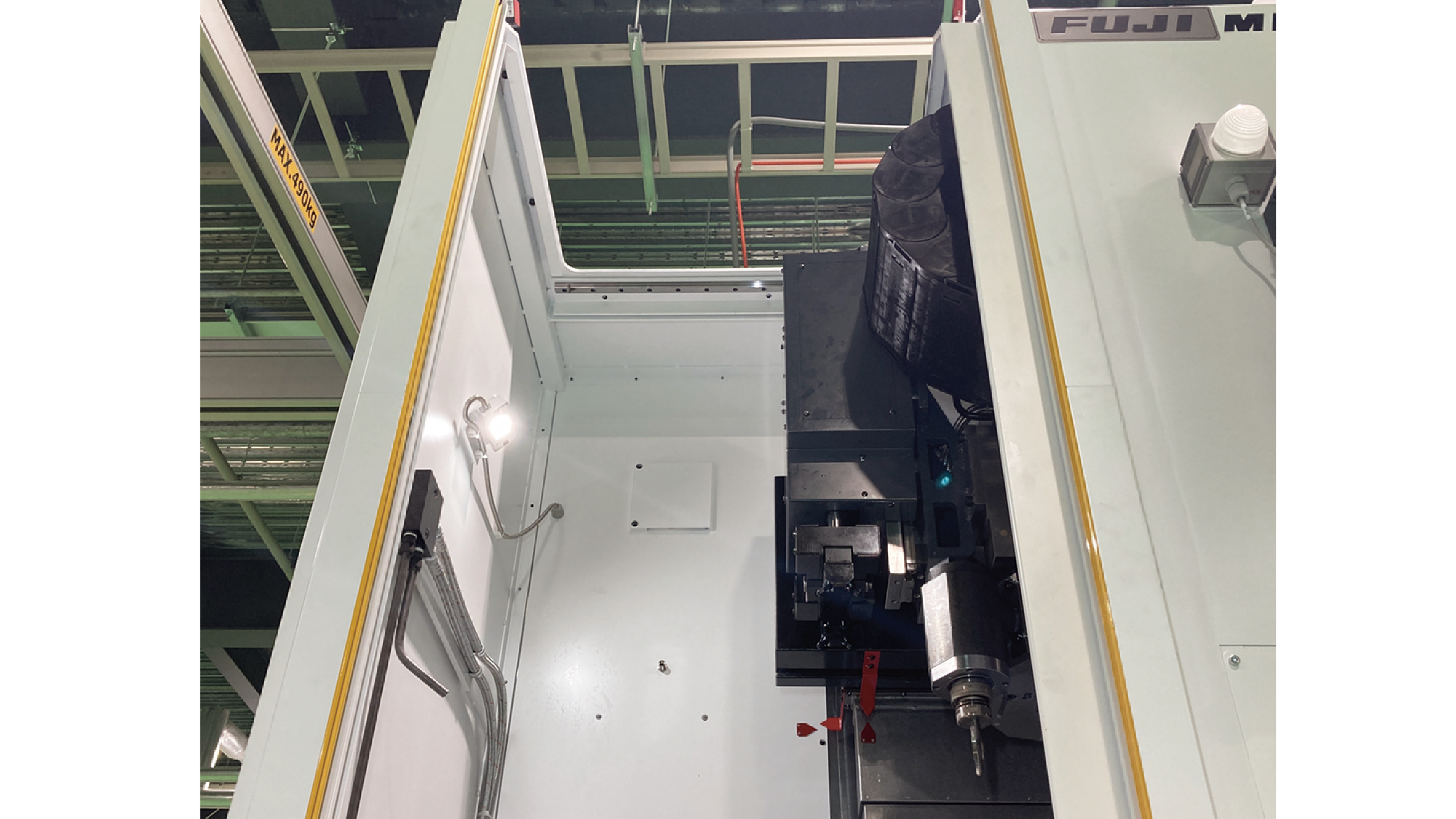

Opening at the upper section of the machine
It features a large opening that makes it easy to load and unload even large workpieces.

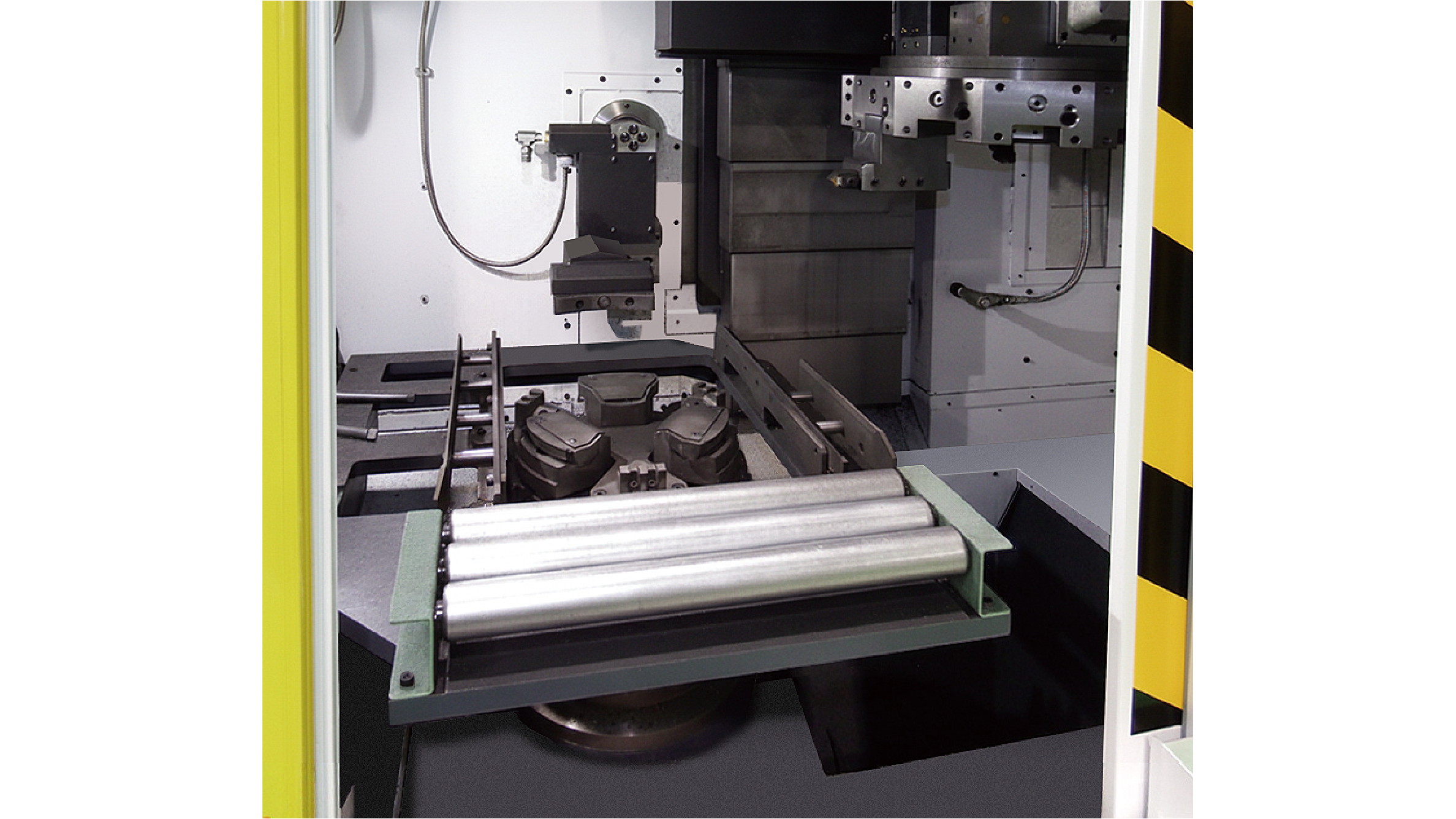

Workpiece lifter & unloading unit
These assist with loading and unloading of heavy workpieces, thereby reducing the workload for users. (Option)

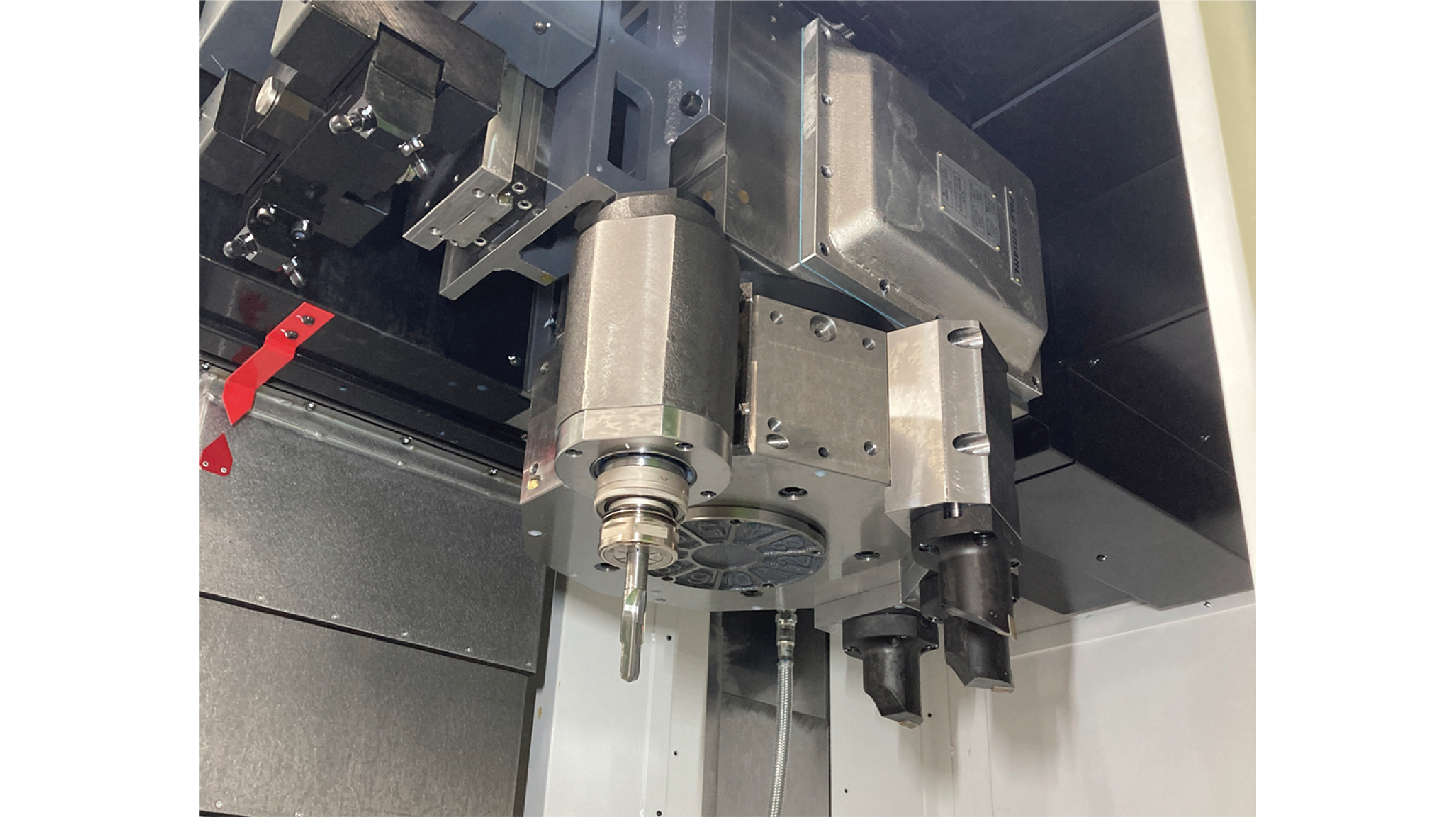

Milling and C-axis functions(VN53)
| Max tool clamping diameter | mm | Φ16 |
|---|---|---|
| Number of tools on turrent | 5 | |
| Live tool rotation speed | min-1 | Max 3000 |
| Live tool motor | w | 2.2/3.7 |

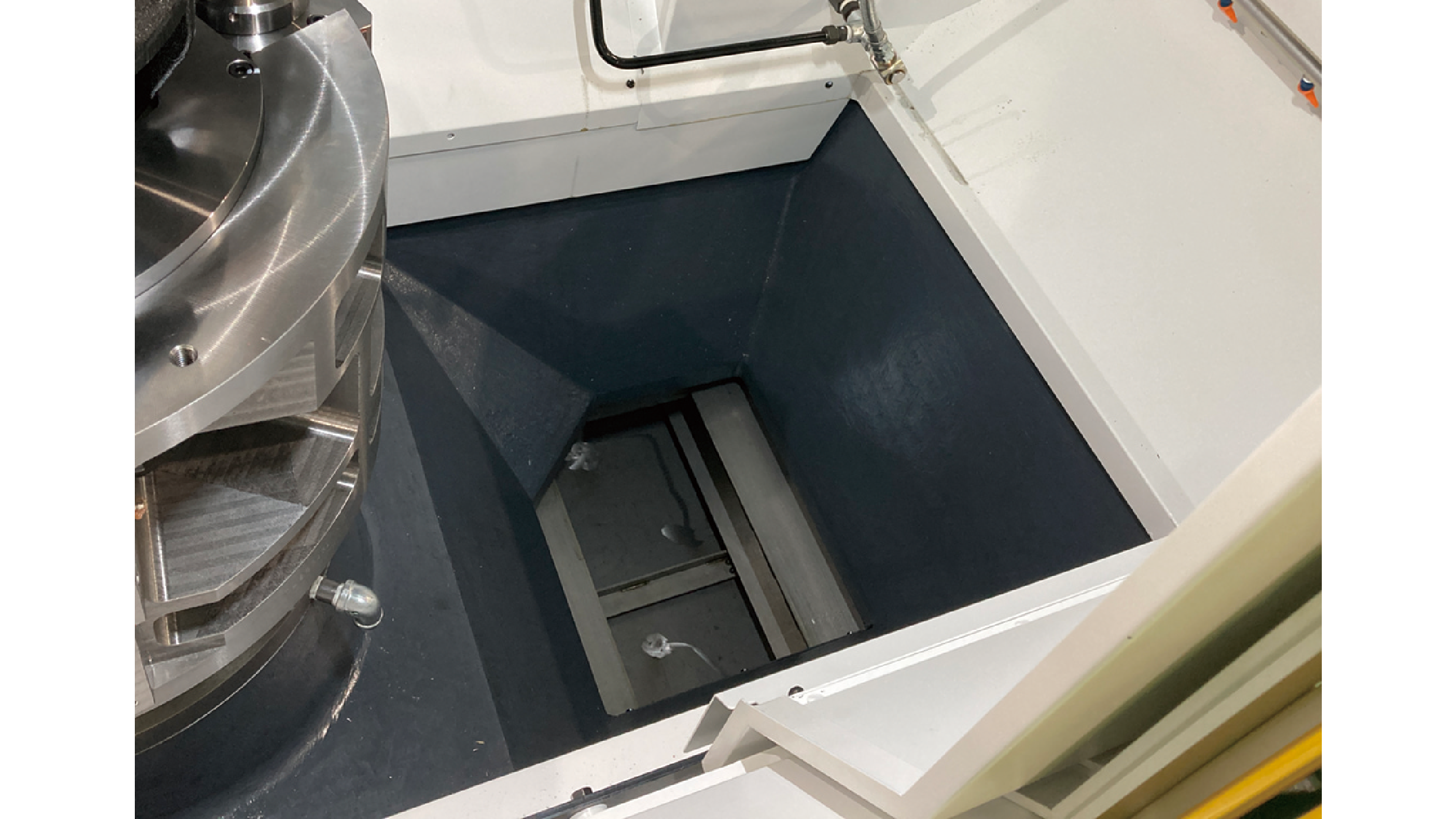

Chip discharge outlet
It features a large chip discharge outlet that discharges chips smoothly.
Series lineup
Vertical CNC lathes
There are two machine sizes available.
